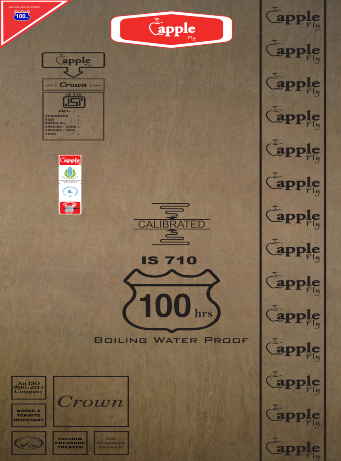

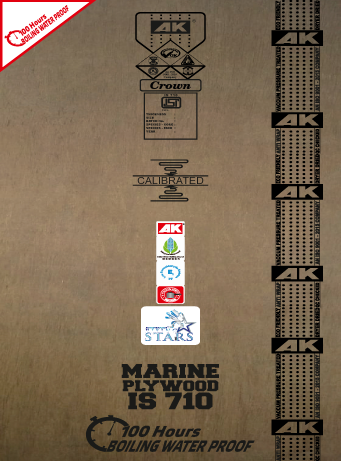

AK/Apple-Crown/Signature Ply

AK Apple Crown/Signature Ply is made of 100% Eucalyptus species with superior bonding strength. It is bonded with Phenol formaldehyde resin and is manufactured as per IS 710 standards. AK Apple Crown/Signature Ply has been industrially vacuum pressure treated with approved preservatives to make it borer proof and it comes with 30 years warranty.

This material is produced as per double pressing technology which includes calibration and re sanding in imported machinery.



AK/APPLE-CROWN PLUS+/SIGNATURE PLUS+

AK Apple Crown Plus+/Signature Plus+ Ply is 100% core composed zero gap product made of 100% Eucalyptus species with superior bonding strength. It is bonded with Phenol formaldehyde resin and is manufactured as per IS 710 standards. AK Apple Crown Plus+/Signature Plus+ has been industrially vacuum pressure treated with approved preservatives to make it borer proof and it comes with 32 years warranty.

The core composed in an automatic core composer machine which makes 8’x4’ sheets and this material is produced as per double pressing technology which includes calibration and re sanding in well advanced heavy-duty top and bottom calibration imported machinery.

SUMMARY

SPECIALITIES

TECHNICAL INFORMATION

SIZE

AK /APPLE-CROWN/SIGNATURE

SPECIALITIES

State-of-the-art ideas for home and commercial purposes; engineered to deliver the perfect amalgamation of design, durability and performance

100 Hours
BOILING WATER PROOF

*Only for AK Apple Crown Plus+/Signature Plus+ Ply is 100%

TECHNICAL INFORMATION AS PER IS 710:2010

NO TESTS PRESCRIBED VALUE VALUE OBTAINED
1 Dimensions, mm
a) Length
b) Width		 Tolerance +6mm -0mm
Tolerance +3mm -0mm		 +2mm
+1mm
2 Squareness, % 0.2 0.04
3 Edge straightness, % 0.2 0.05
4 Workmanship and Finish As per clause 7 Conforms
5 Moisture Content % 5-15 10.5
6 Glue adhesion strength in dry state
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) ) Adhesion of plies.(Knife test)		 1350
1100
Min.Pass standard		 1450
1410
Excellent
7 Water resistance test
(After 72 hrs. boiling), N
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)		 1000
800
Min.Pass standard		 1180
1130
Excellent
8 Tensile strength, N/mm2
i) Parallel to the face grain
ii) Perpendicular to face grain
iii) Sum of the tensile strength		 Min. 42.0
Min. 25.0
Min. 84.50		 55
44
99
9 Mycological test
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)		 1000
800
Min.Pass standard		 1170
1130
Excellent
10 Static bending strength
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 7500
6700

4000
3600

 8010
7680

6850
6250
11 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 50
45

30
27

 68
60

55
46
12 Wet bending strength,
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 3750
3400

2000
1800

 5350
4860

4430
3850
13 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 25
22

15
13

 40
35

34
29
14 Retention of Preservative chemicals, Kg/m3 Min.12 12.860
COMMON THICKNESS RANGE

4mm to 25mm

COMMON SIZE

8feet x 4feet, 7feet x 4feet, 6feet x 4feet, 8feet x 3feet, 7feet x 3feet, 6feet x 3feet, 5feet x 4feet, 5feet x 3feet and other sizes as per customer requirement.

BOND/ADHESIVE

BWP grade resin as per IS 848.
Low formaldehyde formulation for compliance to emission level requirements such as E1.

STANDARD

Conforms to IS 710 (BWP grade)

WARRANTY

30 years (Apple-Crown)

32 years (Apple-Crown+)



100 Hours
BOILING WATER PROOF
