AK / APPLE PLATINUM

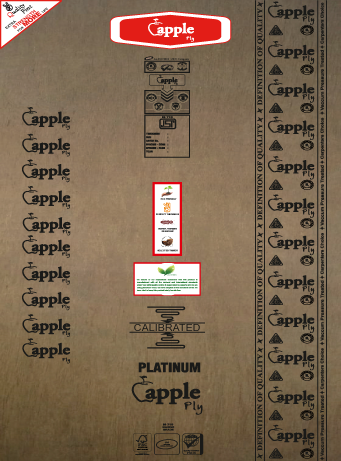

AK / Apple Platinum Ply is a premium product and it is made from Gurjan and best quality hardwood species bonded with Phenol formaldehyde resin. AK / Apple Platinum Ply is manufactured as per IS 710 standards and it has been industrially vacuum pressure treated with approved preservatives to make it borer proof. It comes with 25 years 500% money back warranty.
This material is produced as per double pressing technology which includes calibration and re sanding in imported machinery.

SUMMARY

SPECIALITIES

TECHNICAL INFORMATION

SIZE

AK HIT PLY/APPLE VILLA

SPECIALITIES

State-of-the-art ideas for home and commercial purposes; engineered to deliver the perfect amalgamation of design, durability and performance

100 Hours
BOILING WATER PROOF

TECHNICAL INFORMATION AS PER IS 710:2010

NO TESTS PRESCRIBED VALUE VALUE OBTAINED
1 Dimensions, mm
a) Length
b) Width
Tolerance +6mm -0mm
Tolerance +3mm -0mm
+2mm
+1mm
2 Squareness, % 0.2 0.04
3 Edge straightness, % 0.2 0.05
4 Workmanship and Finish As per clause 7 Conforms
5 Moisture Content % 5-15 10.5
6 Glue adhesion strength in dry state
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) ) Adhesion of plies.(Knife test)
1350
1100
Min.Pass standard
1580
1490
Excellent
7 Water resistance test
(After 72 hrs. boiling), N
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)
1000
800
Min.Pass standard
1250
1190
Excellent
8 Tensile strength, N/mm2
i) Parallel to the face grain
ii) Perpendicular to face grain
iii) Sum of the tensile strength
Min. 42.0
Min. 25.0
Min. 84.50
66
55
121
9 Mycological test
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)
1000
800
Min.Pass standard
1260
1200
Excellent
10 Static bending strength
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual
7500
6700

4000
3600

8990
8430

7960
7150

11 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual
50
45

30
27

79
74

73
68

12 Wet bending strength,
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual
3750
3400

2000
1800

6350
6052

5350
5020

13 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual
25
22

15
13

53
48

42
35

14 Retention of Preservative chemicals, Kg/m3 Min.12 13.250

COMMON THICKNESS RANGE
4mm to 25mm
COMMON SIZE

8feet x 4feet, 7feet x 4feet, 6feet x 4feet, 8feet x 3feet, 7feet x 3feet, 6feet x 3feet, 5feet x 4feet, 5feet x 3feet and other sizes as per customer requirement.

BOND/ADHESIVE

BWP grade resin as per IS 848.
Low formaldehyde formulation for compliance to emission level requirements such as E1.

STANDARD

Conforms to IS 710 (BWP grade)

WARRANTY

25 years with 500% money back warranty
