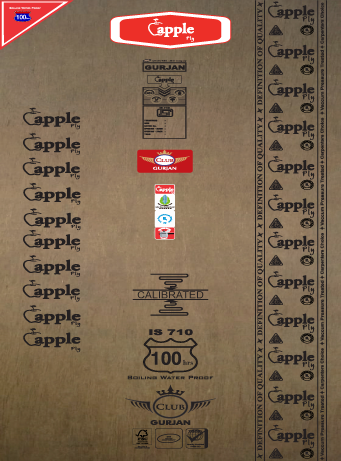

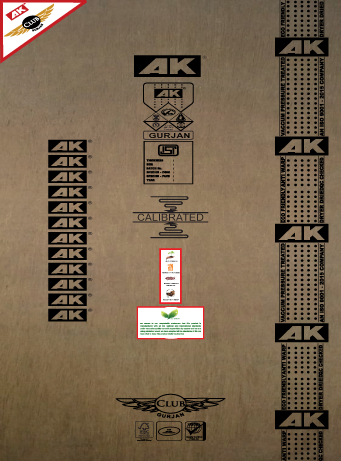

AK CLUB / APPLE CLUB PLY

AK Club / Apple Club Ply is a premium product and it is made from Gurjan and best quality hardwood species bonded with Phenol formaldehyde resin. AK Club / Apple Club ply is manufactured as per IS 710 standard and it has been industrially vacuum pressure treated with approved preservatives to make it borer proof. AK Club / Apple Club Ply is comes with 25 years warranty.
This material is produced as per double pressing technology which includes calibration and re sanding in imported machinery.

AK CLUB PLUS+ / APPLE CLUB PLUS+

AK Club Plus+ / Apple Club Plus+ Ply is a premium 100% core composed zero gap product made from Gurjan and best quality hardwood species bonded with Phenol formaldehyde resin. AK Club Plus+ / Apple Club Plus+ is manufactured as per IS 710 standard and it has been industrially vacuum pressure treated with approved preservatives to make it borer proof. AK Club Plus+ / Apple Club Plus+ is comes with 25 years warranty.
The core composed in an automatic core composer machine which makes 8’x4’ sheets and this material is produced as per double pressing technology which includes calibration and re sanding in well advanced heavy-duty top and bottom calibration imported machinery.

SUMMARY

SPECIALITIES

TECHNICAL INFORMATION

SIZE

AK CLUB / APPLE CLUB

SPECIALITIES

State-of-the-art ideas for home and commercial purposes; engineered to deliver the perfect amalgamation of design, durability and performance

100 Hours
BOILING WATER PROOF

TECHNICAL INFORMATION AS PER IS 710:2010

N0 TESTS PRESCRIBED VALUE VALUE OBTAINED
1 Dimensions, mm
a) Length
b) Width		 Tolerance +6mm -0mm
Tolerance +3mm -0mm		 +2mm
+1mm
2 Squareness, % 0.2 0.04
3 Edge straightness, % 0.2 0.05
4 Workmanship and Finish As per clause 7 Conforms
5 Moisture Content % 5-15 10.5
6 Glue adhesion strength in dry state
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) ) Adhesion of plies.(Knife test)		 1350
1100
Min.Pass standard		 1500
1420
Excellent
7 Water resistance test
(After 72 hrs. boiling), N
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)		 1000
800
Min.Pass standard		 1210
1140
Excellent
8 Tensile strength, N/mm2
i) Parallel to the face grain
ii) Perpendicular to face grain
iii) Sum of the tensile strength		 Min. 42.0
Min. 25.0
Min. 84.50		 61
50
111
9 Mycological test
i) Glue adhesion strength, N
a) Average
b) Min. Individual
ii) Adhesion of plies.(Knife test)		 1000
800
Min.Pass standard		 1200
1120
Excellent
10 Static bending strength
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 7500
6700

4000
3600

 8420
8020

7450
7120
11 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 50
45

30
27

 73
67

65
60
12 Wet bending strength,
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 3750
3400

2000
1800

 5980
5420

4850
4210
13 Modulus of Rupture
Modulus of Elasticity, N/mm2
i) Along the face grain
a) Average
b) Min. Individual
ii) Across the face grain
a) Average
b) Min. Individual		 25
22

15
13

 45
41

39
31
14 Retention of Preservative chemicals, Kg/m3 Min.12 13.110
COMMON THICKNESS RANGE

4mm to 25mm

COMMON SIZE

8feet x 4feet, 7feet x 4feet, 6feet x 4feet, 8feet x 3feet, 7feet x 3feet, 6feet x 3feet, 5feet x 4feet, 5feet x 3feet and other sizes as per customer requirement.

BOND/ADHESIVE

BWP grade resin as per IS 848.
Low formaldehyde formulation for compliance to emission level requirements such as E1.

STANDARD

Conforms to IS 710 (BWP grade)

WARRANTY

25 years
