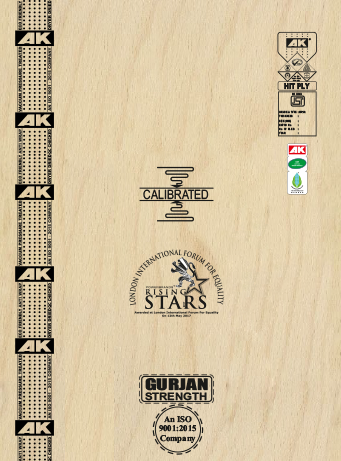

AK HIT PLY/ APPLE VILLA

AK Hit Ply/ Apple Villa is made of a high-quality hardwood species and is bonded with UMF resin (MR grade). It is manufactured as per the IS 303 (MR grade) standard and has been industrially vacuum pressure treated with approved preservatives to make it borer proof. This material is produced as per double-pressing technology which includes calibration and re-sanding in imported machinery.

SUMMARY

SPECIALITIES

TECHNICAL INFORMATION

SIZE

AK HIT PLY/APPLE VILLA

SPECIALITIES

State-of-the-art ideas for home and commercial purposes; engineered to deliver the perfect amalgamation of design, durability and performance.

Borer and Powder Free

Klin Seasoned & Uniform Thickness

Low Formaldehyde Emission

Quality Checked

Vaccum Pressure Treated

SL NO TESTS PRESCRIBED VALUE VALUE OBTAINED
1 Dimensions, mm
a) Length
b) Width
c) Thickness
Tolerance +6mm -0mm
Tolerance +3mm -0mm
+/-5%
+2mm
+1mm
+2%
2 Squareness, % 0.2 0.05
3 Edge straightness, % 0.2 0.06
4 Workmanship and Finish Conforms Conforms
5 Moisture Content % 5-15 10
6 Resistance to water, Adhesion of plies Min. Pass standard Pass standard
7 Resistance to micro organisms
( Adhesion of plies)
Min. Pass standard Excellent
8 Modulus of Elasticity, N/mm2
i) Parallel to the face grain
a) Average
b) Min. Individual
ii) Perpendicular to the Face grain
a) Average
b) Min. Individual
4000
3600

2000
1800

5420
5020

4560
4120

9 Modulus of Rupture, N/mm2
i) Parallel to the face grain
a) Average
b) Min. Individual
ii) Perpendicular to the Face grain
30
27

15
13

50
46

40
34

COMMON THICKNESS RANGE

4mm to 25mm



COMMON SIZE

8feet x 4feet, 7feet x 4feet, 6feet x 4feet, 8feet x 3feet, 7feet x 3feet, 6feet x 3feet, 5feet x 4feet, 5feet x 3feet and other sizes as per customer requirement



BOND/ADHESIVE

MR grade resin as per IS 848.
Low formaldehyde formulation for compliance to emission level requirements such as E1.



STANDARD

Conforms to IS 303 (MR grade)



WARRANTY

7 years
